Equipment

we operate a large number of techniques for the preparation of thin films and bulk materials as well as for their characterization. In addition, we have nanomachining systems such as e-beam lithography or focussed ion beam milling. Here, you can find the most important systems:

Thin film deposition

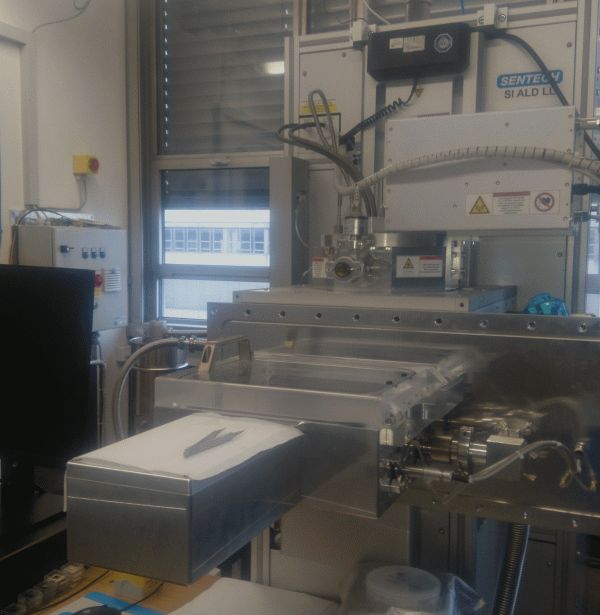

	Sentech atomic layer deposition thermal and plasma enhanced deposition four precursor gases up to 100mm samples from room temperature up to 300℃ extremely uniform and conform oxide- and nitride-layers

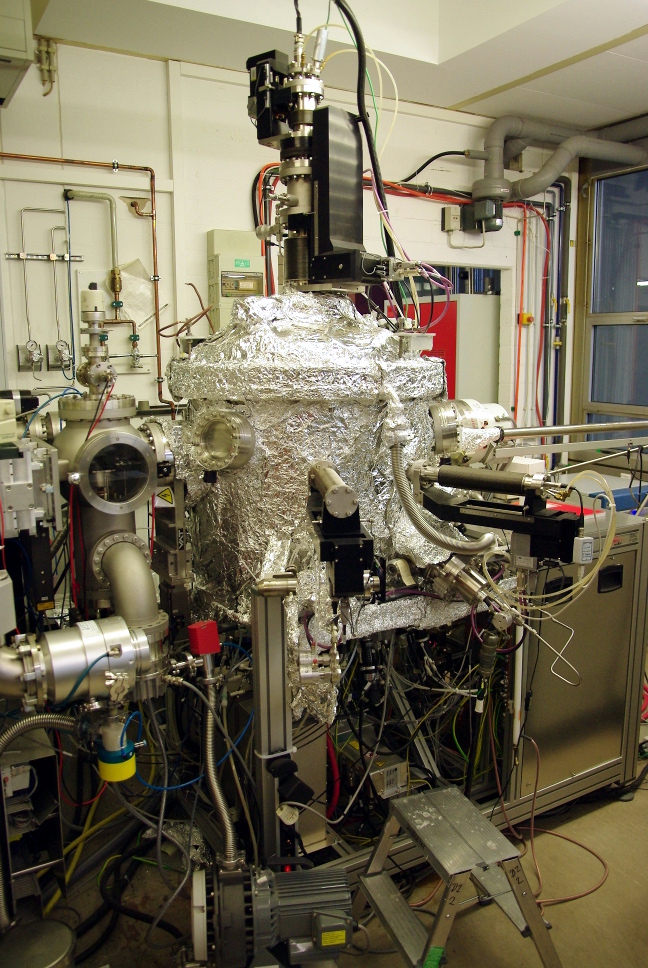

	BesTec 3 inch Co-Sputtering System sputter deposition 8 sources, 3", DC or RF mode ultra high vacuum sample heating (1000°C), rotation 10 kW electron beam evaporator 1kW rapid thermal annealing unit
	Leybold CLAB600 sputter deposition 6 sources, 4", DC or RF mode high vacuum automatic sample handling plasma oxidation chamber
	BesTec 2 inch Co-Sputtering System sputter deposition 4 sources, 2", DC or RF mode ultra high vacuum sample heating (1000°C), rotation

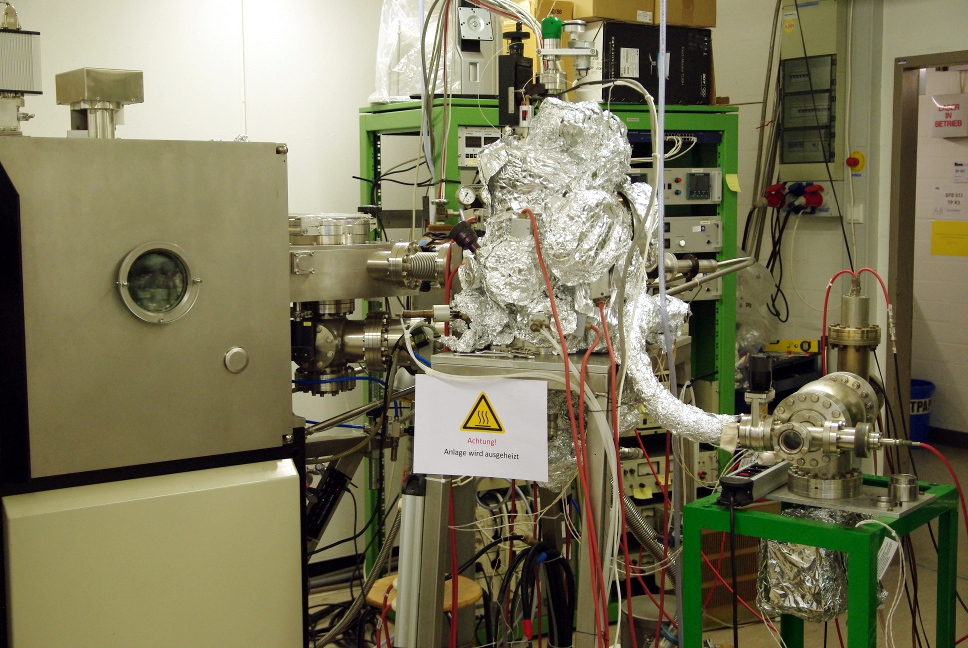

	Molecular Beam Epitaxy & Leybold CLAB560 4 sources, 4", DC or RF mode 4 Knudsen cells for co-deposition electron beam evaporation sample heating (1000°C) ultra high vacuum
	Insulator Sputtering DC or RF reactive sputtering ultra high vacuum TaOx, SiO2, Ta, Au
	Clean Room wet bench, spin coating UV lithography with masks Heidelberg Instruments DWL66 laser lithography with CAD control

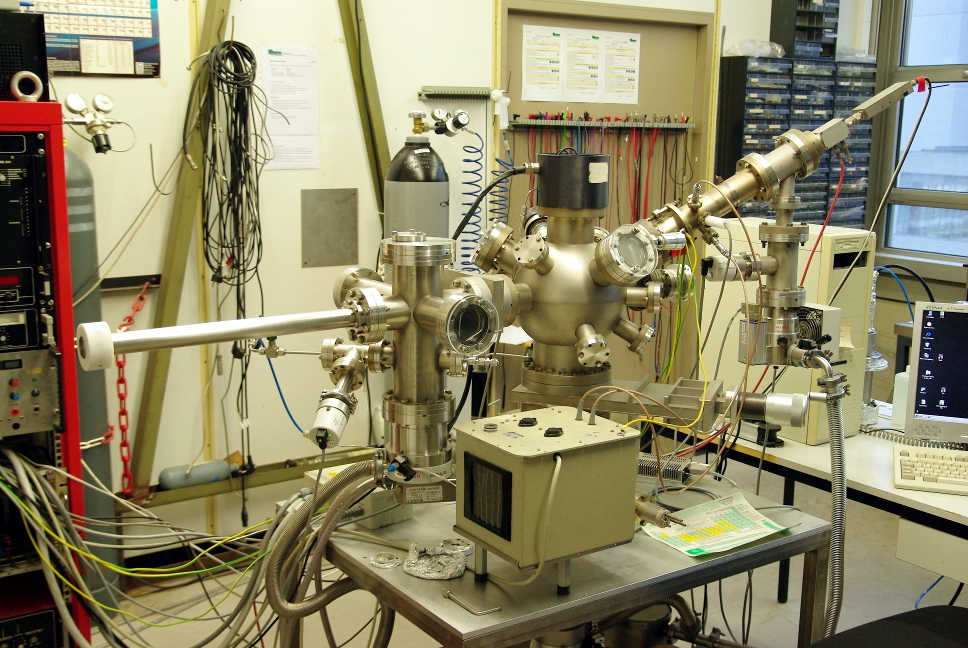

	Ion Beam Etching low-voltage ion beam (up to 1.2keV) ultra high vacuum secondary ion mass spectroscopy (SIMS)
	FEI Helios NanoLab DualBeam Focused Ion Beam Ga ion beam nano-manipulator scanning electron microscope EDX for mapping 3D tomography
	Zeiss LEO 1530 Scanning Electron Microscope 5-20kV operating voltage high vacuum EDX detector Raith laser interferometer sample stage for electron beam lithography

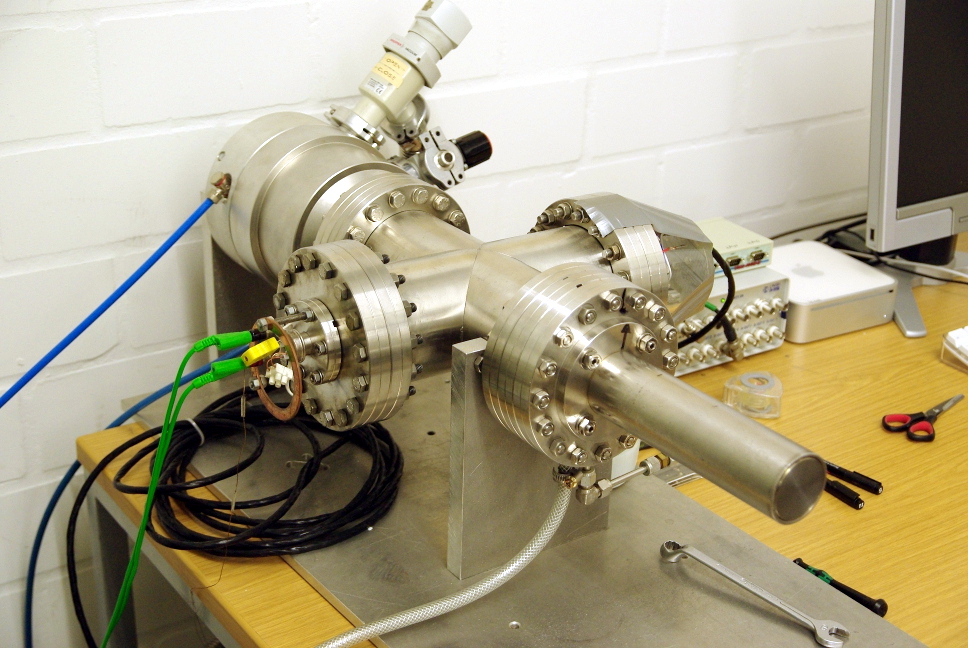

	Annealing Furnace up to 550°C ultra high vacuum field cooling (0.65T)

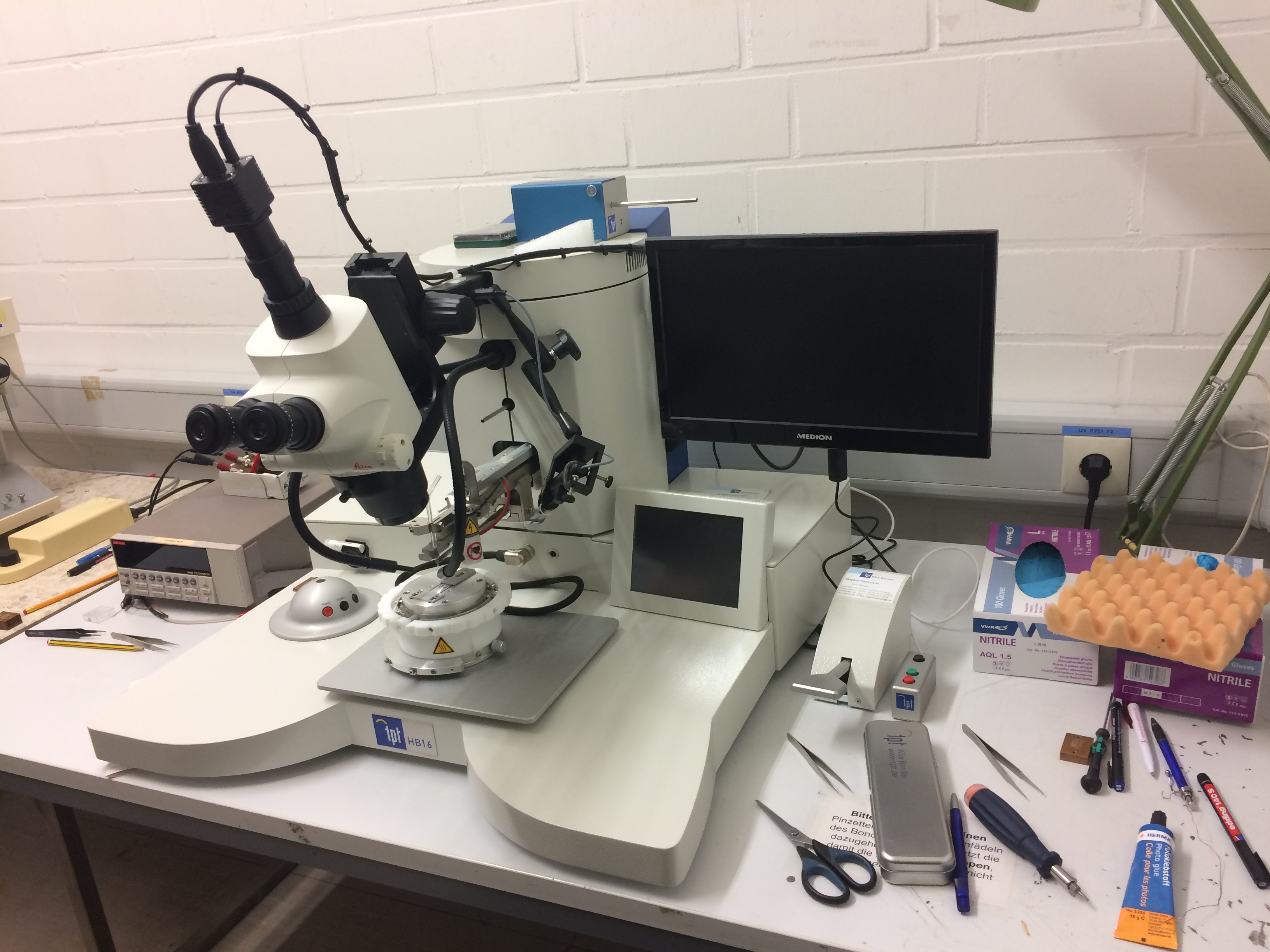

	TPT HB 16 Bonder Al or Au wire Ball and wedge bonding

Analytics

	Philips X'Pert Pro MPD x-ray diffractometer Theta-Theta geometry Cu Ka source Bragg-Brentano optics open Euler cradle LN2 chamber for cryo measurements x-ray reflectivity (XRR) small angle x-ray scattering (SAXS)

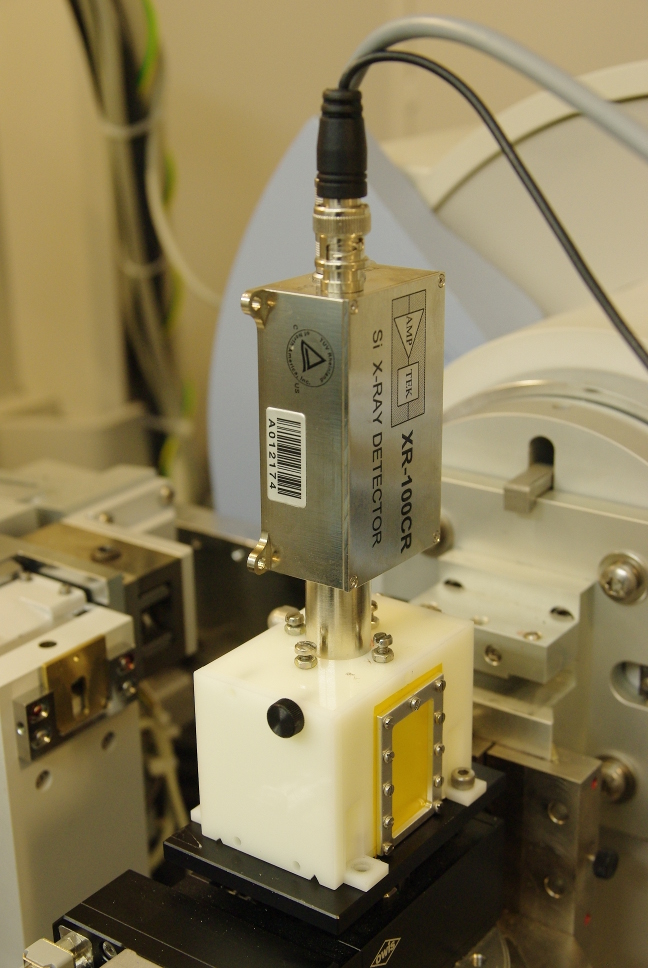

	Amptek XR-100CR x-ray fluorescence detector upgrade for Philips X'Pert diffractometer Cu source He enclosure for elements down to Al no LN2
	Auger Electron Microscope Ar ion gun for depth profiling
	Vector and 2T MOKE 3-axis magnet (0.35T) perpendicular or 45° incident light sample rotation and heating Kerr rotation and ellipticity different wavelengths Bruker electromagnet (up to 2T) polar and longitudinal geometry 650nm Laser s- or p-polarized incident light
	Cryogenic Ltd. Cryostat closed cycle He cryostat (1.2 K) 3He dilution insert (0.3K) 4T superconducting magnet
	Thermal Gradients Setup rotating magnetic field and temperature gradient up to 0.1 T magnetic field, ΔT 30 K thermal camera
	Princeton MicroMag Alternating Gradient Magnetometer Magnetic Field: 1.4T cryo insert for LN2 or LHe, sample heating
	Atomic Force Microscope Broker Multimode 5 Tapping Mode, Contact Mode Magnetic Force Mode (MFM) Conducting AFM
